The raw materials for pultrusion include a liquid resin mixture (containing resin, fillers and specialized additives) and reinforcing fibers. To achieve the reinforcement purpose, materials in continuous forms such as rolls of fiberglass mat and doffs of fiberglass roving are used. During the pultrusion process, the raw materials are pulled through a heated steel forming die. When the reinforcements are saturated with the resin mixture ("wet-out") in the resin bath and pulled through the die, the resin comes hardened due to the heat from the die and the cured profiles are thus formed in the same shape as the die.
High Percentage of Fiberglass
Extremely High Unidirectional Strength and Stiffness
Where Long Spans and High Load Capacity Required
Good Corrosion Resistance
Long Life
Low Maintenance with the Low Installation Cost

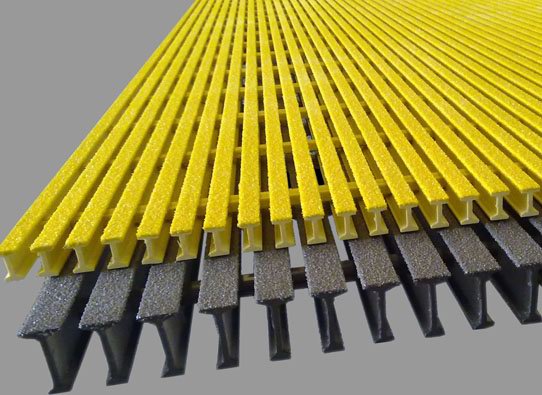

Pultruded Grating Profile
|
Series
|
Panel thickness
(mm)
|
Shape size
|
Load bar
spacing (mm)
|
Open area
|
Wt.
(kg/m2)
|
|
Height(mm)
|
top width(mm)
|
|
I25-40
|
25
|
25
|
15
|
25
|
40%
|
12.5
|
|
I25-50
|
25
|
25
|
15
|
30
|
50%
|
10.5
|
|
I25-60
|
25
|
25
|
15
|
38
|
60%
|
8.5
|
|
T25-33
|
25
|
25
|
25
|
38
|
33%
|
12.5
|
|
T25-50
|
25
|
25
|
25
|
50
|
50%
|
10.5
|
|
WT25-25
|
25
|
25
|
38
|
50
|
25%
|
12.8
|
|
WT25-18
|
25
|
25
|
38
|
46.5
|
18%
|
13.5
|
|
WT25-12
|
25
|
25
|
38
|
43.5
|
12%
|
14.5
|
|
I38-40
|
38
|
38
|
15
|
25
|
40%
|
26.7
|
|
I38-50
|
38
|
38
|
15
|
30
|
50%
|
22.5
|
|
I38-60
|
38
|
38
|
15
|
38
|
60%
|
18.5
|
|
T38-33
|
38
|
38
|
25
|
38
|
33%
|
14.8
|
|
T38-50
|
38
|
38
|
38
|
50
|
50%
|
11.8
|
|
WT38-25
|
38
|
38
|
38
|
50
|
25%
|
16.8
|
|
WT38-18
|
38
|
38
|
38
|
46.5
|
18%
|
18.5
|
|
WT38-12
|
38
|
38
|
38
|
43.5
|
12%
|
19.5
|
|
T50-33
|
50
|
50
|
25
|
38
|
33%
|
20.5
|
|
T50-50
|
50
|
50
|
25
|
50
|
50%
|
16.5
|
|
Other grating of open area is avilable on request.
|
